NO BUG: Bricks editor shows differently than frontend for an eyebrow line

Browser: Safari
OS: macOS
URL: (this is a site with coming soon mode enabled, so this issue can’t be viewed unless logged in at this time)

I am experiencing another defect where the Bricks editor displays something very differently than the frontend. The frontend looks correct, but the way Bricks is displaying it appears to be wrong in the editor.

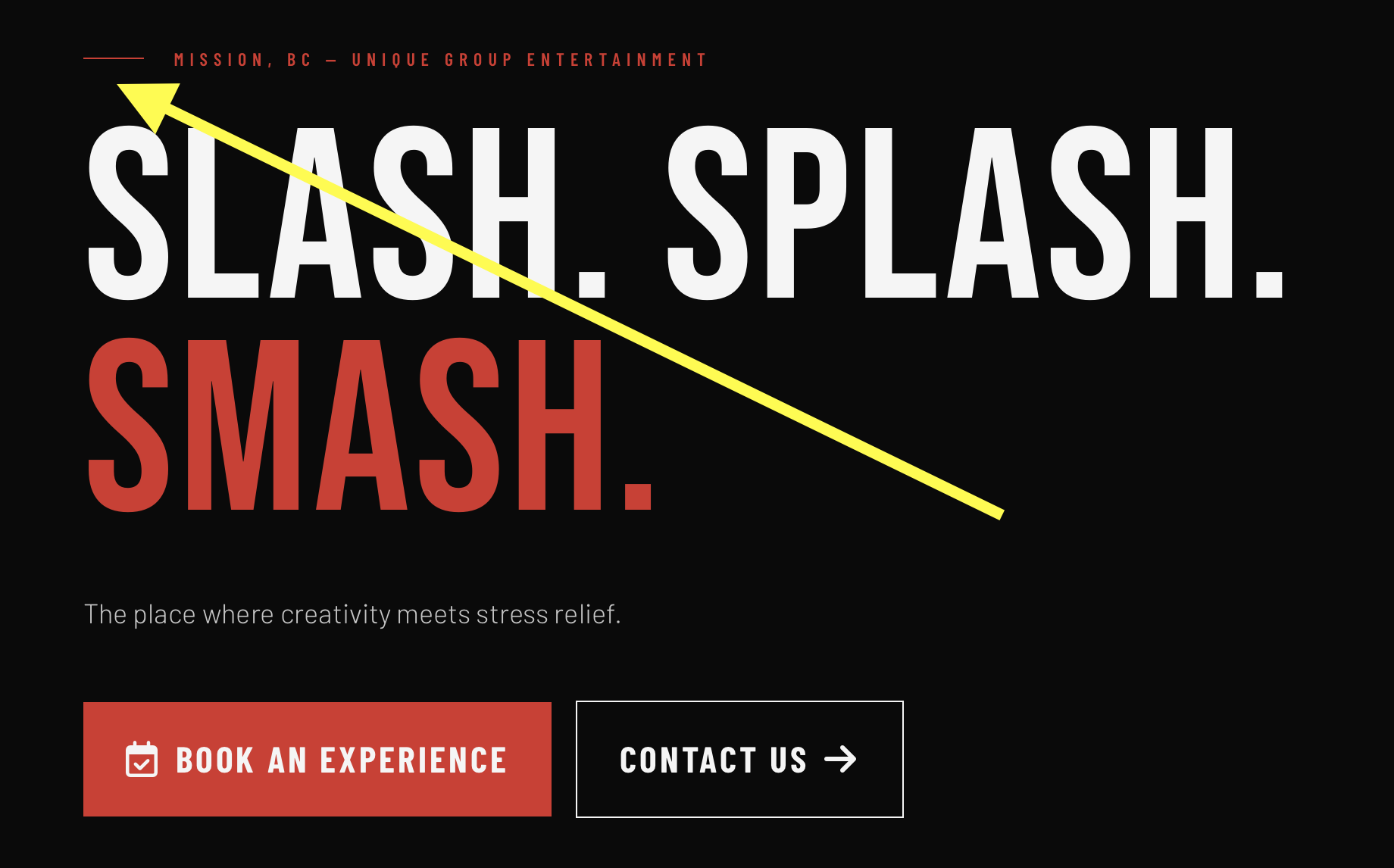

Screenshot of what it looks like on the frontend (which is correct, follow the arrow for the part I’m referring to):

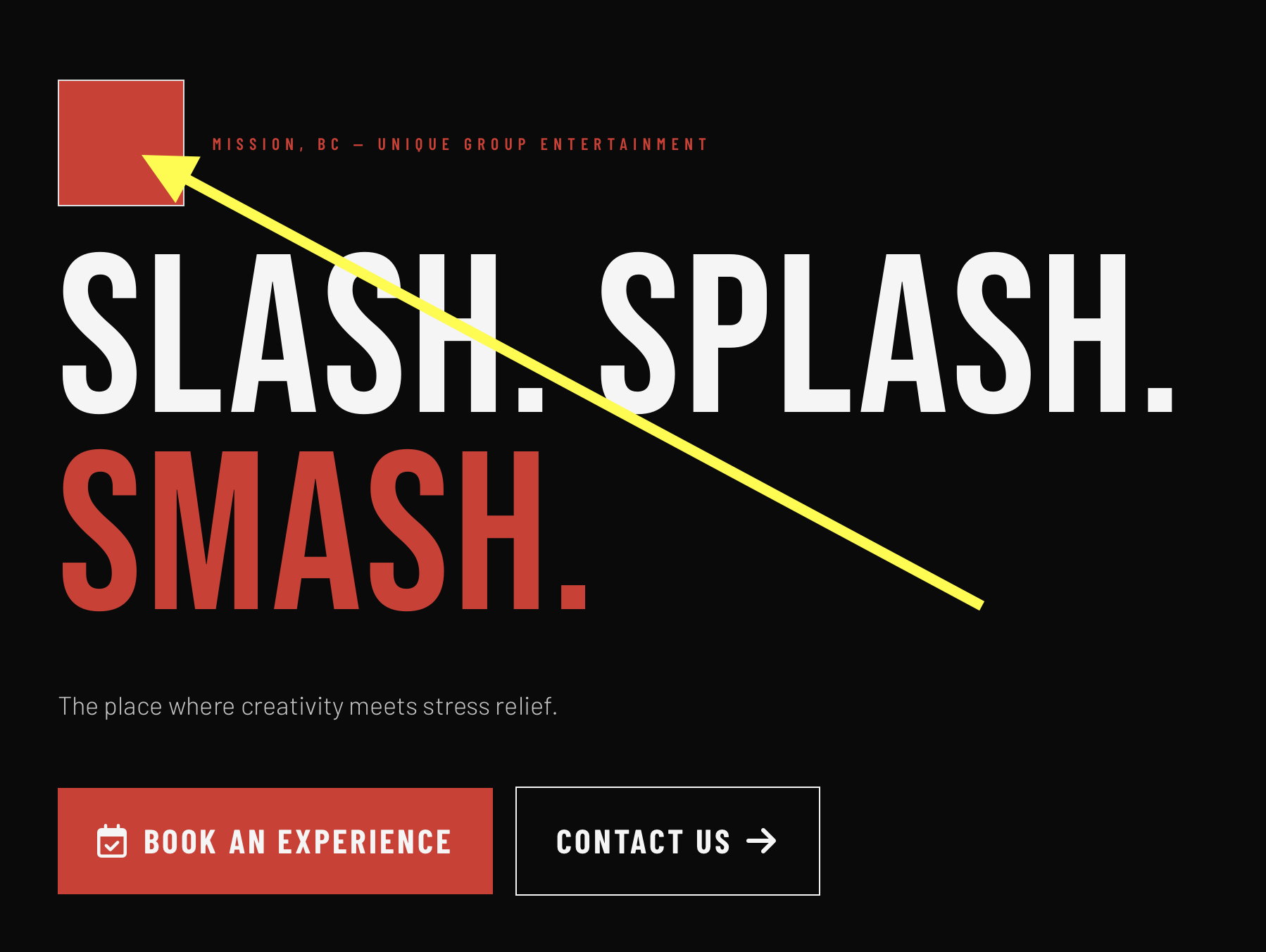

Screenshot of how this appears in the Bricks editor (which is incorrect, follow the arrow again for the part I’m referring to):

As you can see, the eyebrow line becomes a large square in the editor. It loads fine on the frontend though, thankfully.

I am attaching the JSON of the section which contains these particular set of elements, hopefully this will help in diagnosing the issue (and so you can see the current values for the sizing and everything on the eyebrow line. I did redact the source URL though for now, I hope that is okay.

{"content":[{"id":"krdelt","name":"section","parent":0,"children":["zmmwmv","becyew"],"label":"Hero","settings":{"_cssGlobalClasses":["gc0006"],"tag":"section"}},{"id":"zmmwmv","name":"container","parent":"krdelt","children":["dlvqnx","bsjxsb","ahfwfg","clesnn","igtqgc"],"label":"Hero — Content","settings":{"_cssGlobalClasses":["gc0007"],"_cssCustom":"#brxe-zmmwmv { flex: 1; min-height: 0; }"}},{"id":"dlvqnx","name":"block","parent":"zmmwmv","children":["aaicsv","dnsfdh"],"label":"Hero — Eyebrow","settings":{"_cssGlobalClasses":["gc0008"]}},{"id":"aaicsv","name":"block","parent":"dlvqnx","children":[],"label":"Eyebrow Line","settings":{"_cssGlobalClasses":["gc0008b"]}},{"id":"dnsfdh","name":"text-basic","parent":"dlvqnx","children":[],"label":"Eyebrow Text","settings":{"text":"Mission, BC — Unique Group Entertainment","_cssGlobalClasses":["gc0009"]}},{"id":"bsjxsb","name":"heading","parent":"zmmwmv","children":[],"label":"Hero Title — Line 1","settings":{"text":"Slash. Splash.","tag":"h1","_cssGlobalClasses":["gc0010"]}},{"id":"ahfwfg","name":"heading","parent":"zmmwmv","children":[],"label":"Hero Title — Smash (accent)","settings":{"text":"Smash.","tag":"h1","_cssGlobalClasses":["gc0010","gc0011"]}},{"id":"clesnn","name":"text-basic","parent":"zmmwmv","children":[],"label":"Hero Subtitle","settings":{"text":"{mb_global-settings_business_slogan_tagline}","_cssGlobalClasses":["gc0012"]}},{"id":"igtqgc","name":"block","parent":"zmmwmv","children":["ocdega","fpmspo"],"label":"Hero — Actions","settings":{"_cssGlobalClasses":["gc0013"]}},{"id":"ocdega","name":"button","parent":"igtqgc","children":[],"label":"Book an Experience","settings":{"text":"Book an Experience","style":"primary","icon":{"library":"fontawesomeRegular","icon":"far fa-calendar-check"},"iconPosition":"left","_cssGlobalClasses":[],"link":{"type":"meta","newTab":true,"useDynamicData":"{mb_global-settings_cta_link_appointment_booking}"},"size":"lg"}},{"id":"fpmspo","name":"button","parent":"igtqgc","children":[],"label":"Explore Activities","settings":{"text":"Contact Us","link":{"type":"internal","url":"#activities","postId":"133"},"icon":{"library":"fontawesomeSolid","icon":"fas fa-arrow-right"},"iconPosition":"right","_cssGlobalClasses":[],"size":"lg","style":"secondary","outline":true}},{"id":"becyew","name":"block","parent":"krdelt","children":["joejts","ktfsvw","owfqfc","otzgrz"],"label":"Hero — Stat Bar","settings":{"_cssGlobalClasses":["gc0014"],"_cssCustom":"#brxe-becyew { display: grid; }"}},{"id":"joejts","name":"block","parent":"becyew","children":["dzjumn","vybnmu"],"label":"Stat — Experiences","settings":{"_cssGlobalClasses":["gc0015"]}},{"id":"dzjumn","name":"text-basic","parent":"joejts","children":[],"label":"Stat Value","settings":{"text":"3","_cssGlobalClasses":["gc0016"]}},{"id":"vybnmu","name":"text-basic","parent":"joejts","children":[],"label":"Stat Label","settings":{"text":"Unique Experiences","_cssGlobalClasses":["gc0017"]}},{"id":"ktfsvw","name":"block","parent":"becyew","children":["lwmdgk","folyae"],"label":"Stat — Family Friendly","settings":{"_cssGlobalClasses":["gc0015"]}},{"id":"lwmdgk","name":"text-basic","parent":"ktfsvw","children":[],"label":"Stat Value","settings":{"text":"Family","_cssGlobalClasses":["gc0016"]}},{"id":"folyae","name":"text-basic","parent":"ktfsvw","children":[],"label":"Stat Label","settings":{"text":"Friendly","_cssGlobalClasses":["gc0017"]}},{"id":"owfqfc","name":"block","parent":"becyew","children":["bsyqkj","gzxyvq"],"label":"Stat — No Experience","settings":{"_cssGlobalClasses":["gc0015"]}},{"id":"bsyqkj","name":"text-basic","parent":"owfqfc","children":[],"label":"Stat Value","settings":{"text":"Zero","_cssGlobalClasses":["gc0016"]}},{"id":"gzxyvq","name":"text-basic","parent":"owfqfc","children":[],"label":"Stat Label","settings":{"text":"Experience Needed","_cssGlobalClasses":["gc0017"]}},{"id":"otzgrz","name":"block","parent":"becyew","children":["itfvio","wjhxkp"],"label":"Scroll Hint — hide at tablet via WPCodeBox: .hero__scroll { display: none; } @media (max-width:991px)","settings":{"_cssGlobalClasses":["gc0018"]}},{"id":"itfvio","name":"text-basic","parent":"otzgrz","children":[],"label":"Scroll Text","settings":{"text":"Scroll","_cssGlobalClasses":["gc0017"]}},{"id":"wjhxkp","name":"block","parent":"otzgrz","children":["krxgga"],"label":"Scroll Arrow","settings":{"_cssGlobalClasses":["gc0019"]}},{"id":"krxgga","name":"icon","parent":"wjhxkp","children":[],"label":"Arrow Icon","settings":{"icon":{"library":"fontawesomeSolid","icon":"fas fa-arrow-down"}}}],"source":"bricksCopiedElements","sourceUrl":"https://{redacted}","version":"2.3.1","globalClasses":[{"id":"gc0006","name":"hero","settings":{"_direction":"column","_heightMin":"100svh","_position":"relative","_overflow":"hidden","_gradient":{"applyTo":"background","type":"linear","angle":"135deg","stops":[{"color":{"hex":"#1a0000"},"position":"0%"},{"color":{"raw":"var(--background, #0a0a0a)"},"position":"40%"},{"color":{"hex":"#000000"},"position":"100%"}]}},"modified":1775456602,"user_id":2},{"id":"gc0007","name":"hero__content","settings":{"_direction":"column","_justifyContent":"flex-end","_position":"relative","_zIndex":"2","_padding":{"top":"0","right":"60px","bottom":"80px","left":"60px"},"_padding:tablet_portrait":{"top":"0","right":"28px","bottom":"60px","left":"28px"},"_padding:mobile_portrait":{"top":"0","right":"20px","bottom":"48px","left":"20px"}},"modified":1775456602,"user_id":2},{"id":"gc0008","name":"hero__eyebrow","settings":{"_direction":"row","_columnGap":"var(--space-s)","_margin":{"bottom":"var(--space-m)"},"_alignItems":"center"},"_exists":false},{"id":"gc0008b","name":"hero__eyebrow-line","settings":{"_height":"1px","_background":{"color":{"raw":"var(--primary)"}},"_flexShrink":"0","_width":"40px"},"_exists":false},{"id":"gc0009","name":"hero__eyebrow-text","settings":{"_typography":{"font-family":"Barlow Condensed","font-size":"12px","font-weight":"600","letter-spacing":"4px","text-transform":"uppercase","color":{"raw":"var(--primary)"}}},"modified":1775456602,"user_id":2},{"id":"gc0010","name":"hero__title","settings":{"_typography":{"font-family":"Bebas Neue","font-size":"clamp(80px, 13vw, 160px)","font-weight":"400","letter-spacing":"3px","line-height":"0.88","color":{"raw":"var(--white)"}},"_margin":{"bottom":"0"}},"modified":1775456602,"user_id":2},{"id":"gc0011","name":"accent","settings":{"_typography":{"color":{"raw":"var(--primary)"}},"_margin":{"bottom":"32px"}},"modified":1775458138,"user_id":2},{"id":"gc0012","name":"hero__sub","settings":{"_typography":{"line-height":"var(--text-line-height-l)","color":{"raw":"var(--light-d-1)"},"font-weight":"300"},"_widthMax":"520px","_margin":{"bottom":"44px"}},"modified":1775456602,"user_id":2},{"id":"gc0013","name":"hero__actions","settings":{"_direction":"row","_alignItems":"center","_columnGap":"16px","_flexWrap":"wrap"},"_exists":false},{"id":"gc0014","name":"hero__foot","settings":{"_position":"relative","_zIndex":"2","_border":{"style":"solid","width":{"top":"1px","right":"0","bottom":"0","left":"0"},"color":{"raw":"var(--border)"}},"_background":{"color":{"rgb":"rgba(10,10,10,0.6)"}},"_gridTemplateColumns":"repeat(3, 1fr) auto","_gridTemplateColumns:tablet_portrait":"repeat(3, 1fr)","_gridTemplateColumns:mobile_portrait":"1fr","_alignItemsGrid":"stretch"},"modified":1775458138,"user_id":2},{"id":"gc0015","name":"hero__stat","settings":{"_direction":"column","_rowGap":"var(--space-3xs)","_padding":{"top":"28px","right":"40px","bottom":"28px","left":"40px"},"_border":{"style":"solid","width":{"top":"0","right":"1px","bottom":"0","left":"0"},"color":{"raw":"var(--border)"}},"_padding:mobile_portrait":{"top":"20px","right":"20px","bottom":"20px","left":"20px"},"_border:mobile_portrait":{"style":"solid","width":{"top":"0","right":"0","bottom":"1px","left":"0"},"color":{"raw":"var(--border)"}}},"modified":1775458138,"user_id":2},{"id":"gc0016","name":"hero__stat-val","settings":{"_typography":{"font-family":"Bebas Neue","font-size":"40px","font-weight":"400","letter-spacing":"1px","line-height":"1","color":{"raw":"var(--white)"}}},"modified":1775456602,"user_id":2},{"id":"gc0017","name":"hero__stat-label","settings":{"_typography":{"font-family":"Barlow Condensed","font-size":"11px","font-weight":"600","letter-spacing":"2.5px","text-transform":"uppercase","color":{"raw":"var(--grey)"}}},"modified":1775458138,"user_id":2},{"id":"gc0018","name":"hero__scroll","settings":{"_direction":"row","_alignItems":"center","_columnGap":"12px","_padding":{"top":"28px","right":"40px","bottom":"28px","left":"40px"},"_cursor":"pointer","_display:tablet_portrait":"none"},"modified":1775457134,"user_id":2},{"id":"gc0019","name":"hero__scroll-arrow","settings":{"_width":"28px","_height":"28px","_alignItems":"center","_justifyContent":"center","_border":{"style":"solid","width":{"top":"1px","right":"1px","bottom":"1px","left":"1px"},"color":{"raw":"var(--border)"}},"_typography":{"font-size":"11px","color":{"raw":"var(--grey)"}}},"modified":1775456602,"user_id":2}]}

Maybe there’s a different way to achieve the same thing in a way that works better for Bricks’ editor, but either way I think this is something that needs to be addressed.


Side note: These frontend vs editor discrepancies really need to be resolved once and for all. They may be minor but they are also pretty frequent and it quickly becomes frustrating to develop or design a website if the tool can’t be trusted to display content properly. There have been many of these types of issues raised in the past, some by me and some by other users. I’m hoping the Bricks dev team can do a bit of a bug-bash session for some of these similar/recurring issues. :slight_smile: :crossed_fingers:

It looks like it is just a flex div. They have a minimum height and width in the builder so they are visible. If they didn’t, you couldn’t see them very easily, or not at all in some cases.

2 Likes

Hi Dustin,
Thanks so much for your report!

However, this isn’t a bug. @macksix’s explanation is 100% accurate. Empty “wrapper” elements have a min-width and min-height on the canvas so that they can be selected. Unset those two properties on your line class and everything will be fine :slight_smile:

Maybe there’s a different way to achieve the same thing in a way that works better for Bricks’ editor…

I would use a ::before pseudo-element.

1 Like

Interesting, thank you for that insight.

I do have to ask though… Is it necessary to have that set large in order to “select” the element? Isn’t that what the structure panel is for? I think most people would much rather have the editor accurately reflect what the frontend would be displaying.

Isn’t that a use-case for the structure panel though?

I think I understand, and I appreciate the guidance. Looks like Stefan has confirmed that explanation as well. I’m just surprised by this canvas choice. I would have expected the canvas to be displaying things accurately to how it is in the frontend (with maybe rare exceptions like custom JS code, animation, etc), so it’s just odd to me that we wouldn’t opt to use the structure panel for the purposes of selecting a thin element.

Well, even if it were just 32x32px, it would still look different in your case :smiley:

Even if you only use the structure panel, other users prefer to select and move elements on the canvas using drag and drop, which wouldn’t be possible with a 0x0px element.

1 Like

Okay, fair enough. My priorities are just different I guess. I prefer the canvas to accurately reflect what it will look like on the frontend. :man_shrugging: I do hope this is improved in the future but I understand if I’m the odd one out on this.

There could be a setting put into the theme styles to set min-width and min-height for containers, in-builder to any valued you want. That way it could be applied to specific pages rather than be a setting that applied globally. However, it would probably require a large number of votes from users to ever get it done. :slightly_smiling_face:
